ETV – updated

Want create site? Find Free WordPress Themes and plugins.

ETV Herakles

Previous ETV details here.

ETV Herakles

DIMENSIONS:

LENGTH O.A. 69.06 MTR

BEAM 14.22 MTR

DEPTH 5.80 MTR

DRAFT 5.60 MTR

CALL SIGN 9HA2808

PORT OF REGISTRY/FLAG Valletta/Malta

BUILT 1980

GROSS 1598

NRT 493

DWT 1497

IMO 7725805

MMSI 256 008 000

CREW 12

PERFORMANCE

Max speed 17 knots.

Bollard Pull 160 tonnes

DECK CAPACITIES

Deck cargo (Maximum weight) 130 tonnes

Deck max length 13.25 metres

Deck max breadth 9.0 – 10.87 metres

Deck space 146.25 sq metres

Maximum deck loading 5.00 tonnes sq metre

PROPULSION

Main Engines: 4 x Ruston 12 RK 3 A B.H.P 11280 BHP

Propellers: 2 x CPP propellers in fixed kort nozzle

THRUSTERS

2 x Bow thrusters total 18 tonnes

SPEED – FUEL CONSUMPTION

Maximum 4 engines: 17.5 knots @ 35 tonnes per day

Economical 2 engines: 12 knots @ 13 tonnes per day

TANK CAPACITIES

Fuel 1 250 tonnes

Freshwater 90 tonnes

DECK EQUIPMENT

Tugger winch 1 x 17 tonne

Pennant winch with 400m

wire 1 x 70 tonne

Deck crane SWL 5 ton@ 5 m

Deck crane foredeck 2 x 1 tonne

TOWING AND ANCHOR HANDLING EQUIPMENT

Donkin side by side towing winches with 200 tonnes line pull on all layers each fitted with 1200 metres x 70mm wire

One anchor handling winch with 150 tonnes line pull and 300 tonnes brake

Anchor handling roll 1.5×4.0m max load 250tonne

1 set shark jaws 400 tonnes SWL

1 set hydraulic guide pins Fully equipped with several pennant wires, chains bridle pick up wires etc.

ANCHOR

Anchoring system: 2 plus 1 spare anchor Anchor 2 x 0000kg Anchor

FIRE FIGHTING

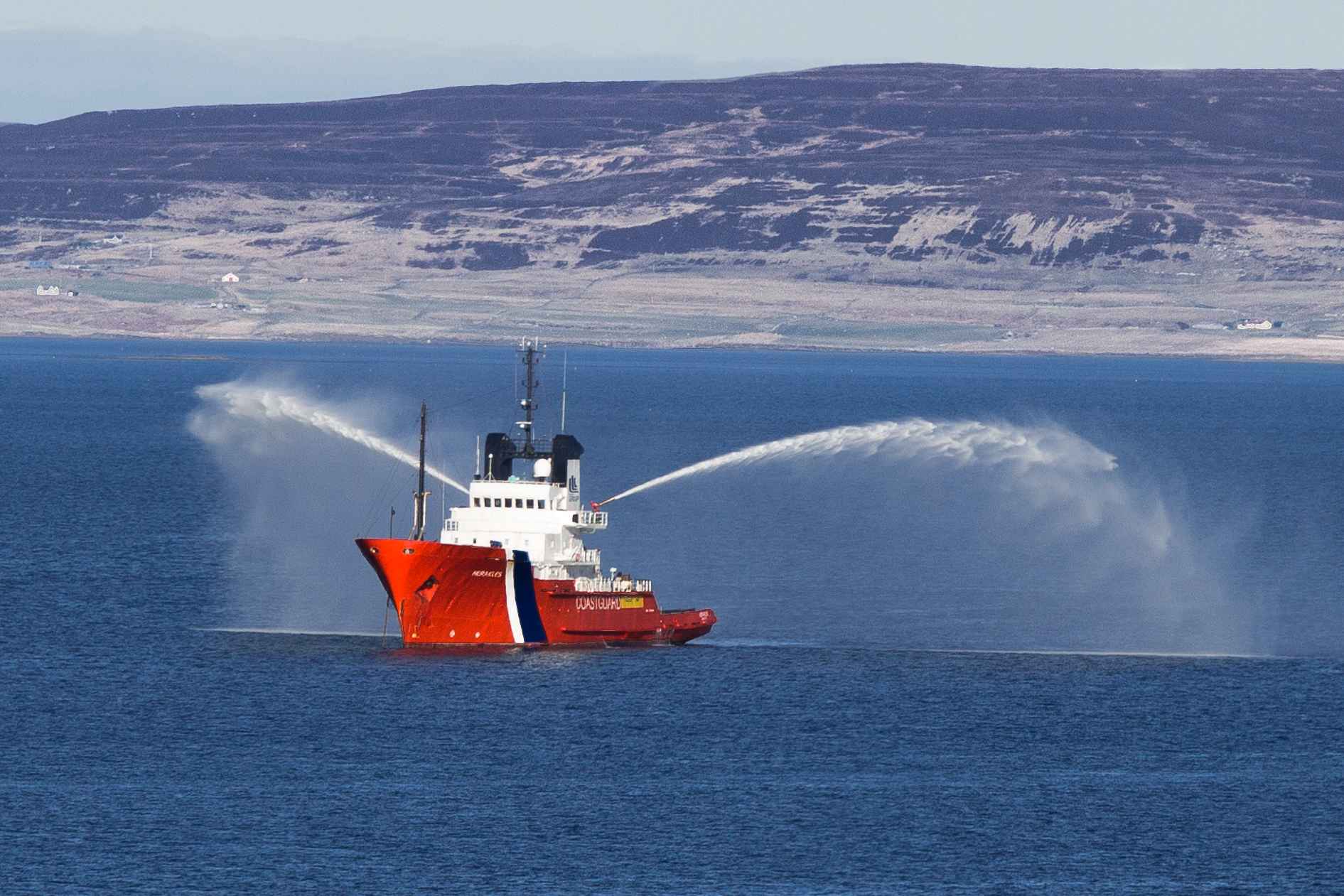

2 x 600 m³ remote controlled fire monitors

AUXILIARIES

1 x Caterpillar D398TA 860BHP @ 1200rpm

1 x Harbour Set Caterpillar 3406 345BHP @ 1800rpm

BRIDGE EQUIPMENT

Auto pilot _ Decca DP450

Radar – 2 x Decca Bridge master

Gyro Compass – Robertson SKR8

GPS – AP

Echo Sounders – Simrad EN

COMMUNICATION

Communications equipment: VHF – 3 x Main stations

SSB Radio

2182 Receiver and transmitter – Koden KS538

3 x Hand held VHF – Skanti 9110

Satcom B system Satcom C system

GSM Cell phone

Cell phone

SAFETY & SALVAGE EQUIPMENT

4 x 16 man life rafts

1 x DOT lifeboat

1 x rescue/salvage boat

3 x Diesel driven pumps

3 x submersible pumps 40m³/h to 500m³/h

1 x 50 KVA generators

Portable pumps, portable generators, oxy/act cutters, welding equipment, diving gear and patching equipment

ACCOMMODATION

Officers:- 6 Single cabins

Ratings:- 3 Single cabins

5 Double cabins

Salvage Crew 1 x 10 man

CLASS

Classification: Lloyds 100A1
